Event Site Overview

This site was originally created to replace the previous registration process for seasonal events. It has since grown to encompass many more features and events than originally intended, including setsumeikais, surveys and single day parties like Chocolate Party & Science Day.

This page starts by explaining the previous event registration process and comparing it to the current site for context, then provides a thorough explanation of the site’s current features.

Customers

Historical Context

Parents registered for activities from a Google Form, which updated a Google Sheet containing all the registrations for a given school.

This was not a great experience for parents, who had to register for each activity from a different page, re-enter their information and their child’s for each event, and repeat the entire process for each child.

It was also impossible to edit a booking once made without contacting the school, creating extra work for both parents and school managers.

By contrast the site allows all activities and options to be registered for from a single page by clicking toggles, saves parent & child information between events (and updates children with information from the SS) and allows registrations for one child to be copied to a sibling with the click of a button.

Customers can edit their booking at any time prior to its confirmation by the SM, without any interaction by KU staff.

Note

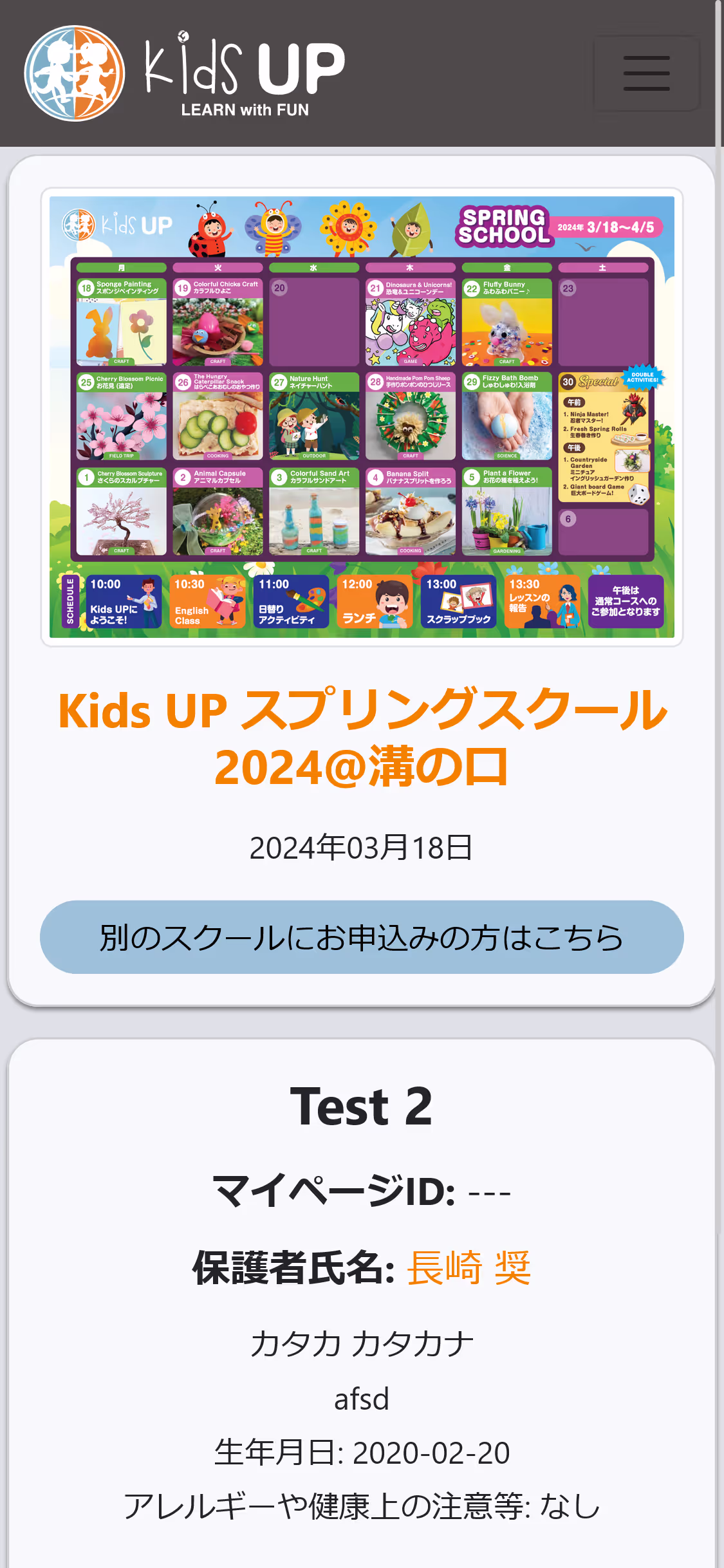

Screenshots for customer features are provided in mobile format, as analytics show this is how most customers interact with the site.

Existing Customers

1. 1. Sign in

2. 2. Select event, or select child then event

3. 3. Select activities and options

4. 4. Confirm details before making the booking

5. 5. Complete the booking.

6. 6. Receive confirmation email


New Customers

1. 1. Sign up

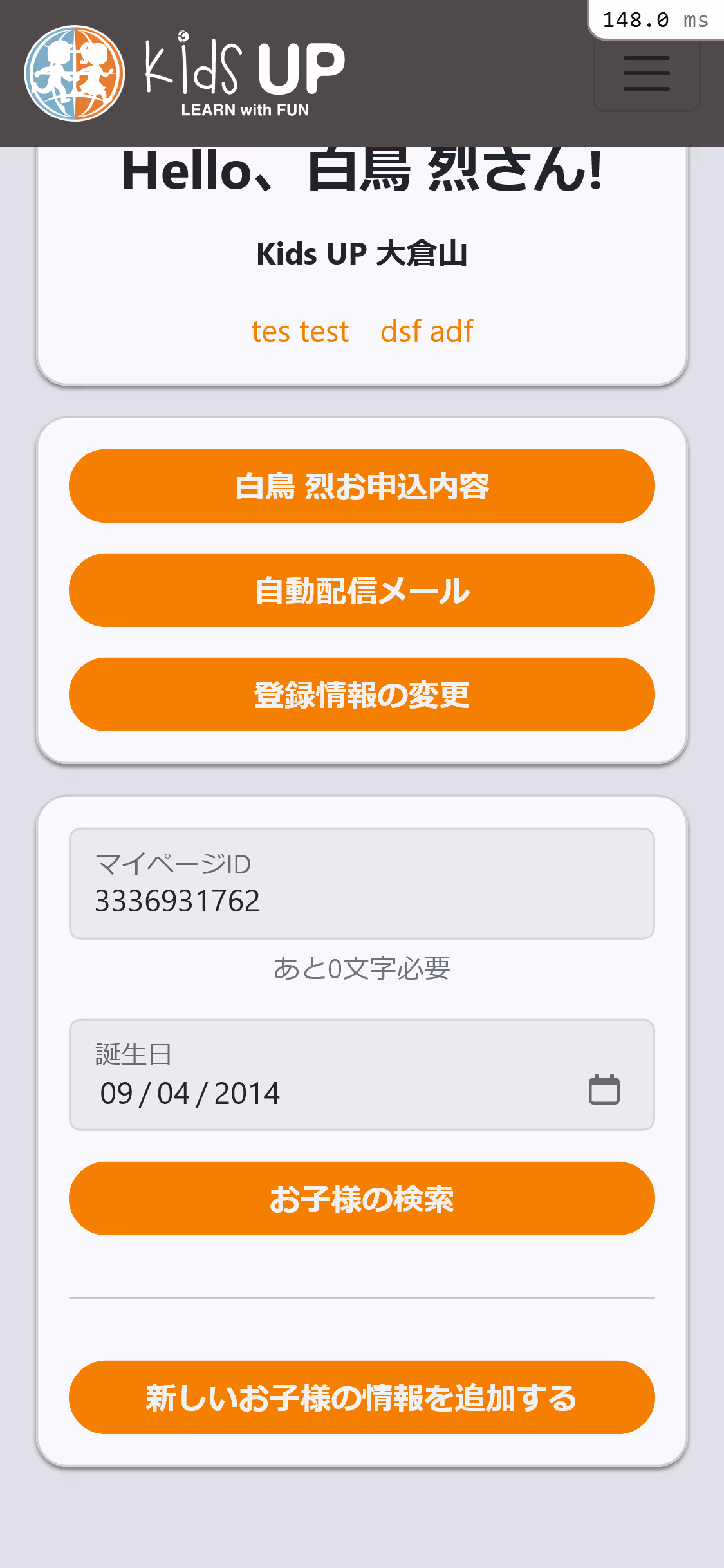

2. 2. Find their child by SSID & birthday

   or add a new child if not in SS/SSID unknown

3. 3. Proceed as if an existing customer from the claimed/added child's profile


---

---

School Managers & above

Historical Context

Staff managed registrations for each event using a Google Sheet which took minutes to load and would often become unresponsive, requiring another minutes-long reload.

Email templates were provided, but could only be sent by manually copying the template into a separate email client, and there was no way of verifying student or parent information.

The site replaced the Google Sheet with a simple table on a web page, which commonly loads in less than a second and never more than 2-3 seconds.

Emails are sent automatically on booking creation, confirmation and any changes. Student information is known to be correct as it’s provided by the SS, and parents/child details are only a click or two away from the table.

Event Sheet

Attendance Sheet

SM Profile

---

---

Area Managers & above

Activity Management

Inquiry Management

Setsumeikai Management

Survey Management

---

---

Admins

Activity Management

Asset Upload/Download

Event Creation

Price List Management

School Management

---

---

Tech Stack

The site is a Ruby on Rails app running on AWS. Rails handles both the back and frontend, with templating originally done in ERB and slowly transitioning to HAML. Client side interactivity is handled by a mix of Bootstrap components and Stimulus.js, with Bootstrap and some custom CSS used for styling.

Hosting is handled by AWS Elastic Beanstalk on the Ruby platform, the domain is managed by Onamae (hopefully transitioning to Cloudflare in August) and Route 53 is the authoritative nameserver. The database is an RDS postgres instance, email is handled by SES and object storage by S3.

Analytics provided by Microsoft Clarity.

---

---

Full Feature Overview

Users

Have one of 5 roles; Admin, Area Manager, School Manager, Statistician and Customer.

• Each role has different permissions, allowing them to access different features of the site.
  • They also have a main navigation bar with links specific to their role
• Permissions/access controlled by the Pundit gem
• Full unit & request test coverage of permissions for all controllers
• Ensured by after_action callbacks on controllers which raise an error if authorisation not performed
• Authenticated by username and an encrypted password, password can be reset using their email

Customers

• Can view their children and their bookings
• Can make bookings for their children at any ongoing event at any school
• Can copy all bookings to a sibling with the click of a button
• Can edit their bookings for ongoing events, and view bookings for past events
• Can claim a child based on their SSID & birthday, or add a new child
• Can manage their email preferences and personal information

Statisticians

• Can view event summary statistics for all current events on profile
• Can view statistics dashboard for all schools and any individual school
• Can view survey results for all schools

School Managers

• Booking Management

  • Can manage all bookings for events at their school
  • Confirm, with or without automated email
  • Add manual adjustments
  • Edit directly, from the same UI as customers
  • Delete unconfirmed bookings
  • Can view event summary statistics and daily activity attendance for their school on their profile
  • Have a list of the 5 most recent bookings at their school at the top of their profile
  • Has a list of all bookings they deleted and their summary/total cost on their profile
  • Merge multiple bookings for the same child into a single booking so their cost is calculated together

• Event Management

  • Can access statistics dashboard for their school
  • Can access the event sheet for events at their school. For each registered student shows:
    • Basic student info
    • Notifications for unusual events like students attending at a school different to their usual one or students missing ids, which link to a page which allows corrective action to be taken
    • List of student bookings for this event with cost & link to booking
    • Total cost for this event
    • A modal to show the booking summary
    • Various toggles to mark the status of the booking, e.g. seen (reset on change), entered into SS, email sent
    • Any coupons applied to the student’s bookings
    • A full list of activities the student will attend, with options and a link to the attendance sheet for each activity
  • Can access attendance sheets for each activity at their school
    • List names of all students attending, along with their options, photo status, membership status, allergies and kindy/elementary status
    • Relevant columns have a count of the children they apply to, for example the number of kindy/elementary kids in the attendance column or the number of photo kids in that column
  • Can access a list of activities for each event at their school, and view their open/closed status
  • Can access a list of all past events at their school, as well as the associated event/attendance sheets

• School Management

  • Can edit their school’s information
  • Can create/manage setsumeikais for their school
  • Can view and manage inquiries for their school
  • Can view survey responses for their school
  • Can access full lists of students and parents associated with their school, as well as their profiles & information
    • The indexes of children and parents can be filtered by name, english name, email, katakana name and SSID as applicable
    • The search feature supports partial matching
    • The SM can access parent/child personal information after entering their PIN
  • Can merge children created by parents into their counterparts imported from the SS, preserving all existing bookings and updating their information to match the SS

Area Managers

• All School Manager capabilities, but for all schools in their managed areas
• Additionally, can manually close or open activities
• View event summary statistics for all schools in their managed areas
• View the school manager profiles for any SM in their area, and all the information found there

Admins

• All capabilities of any other role, but for every school/area
• Overall summary statistics for each active event on their profile

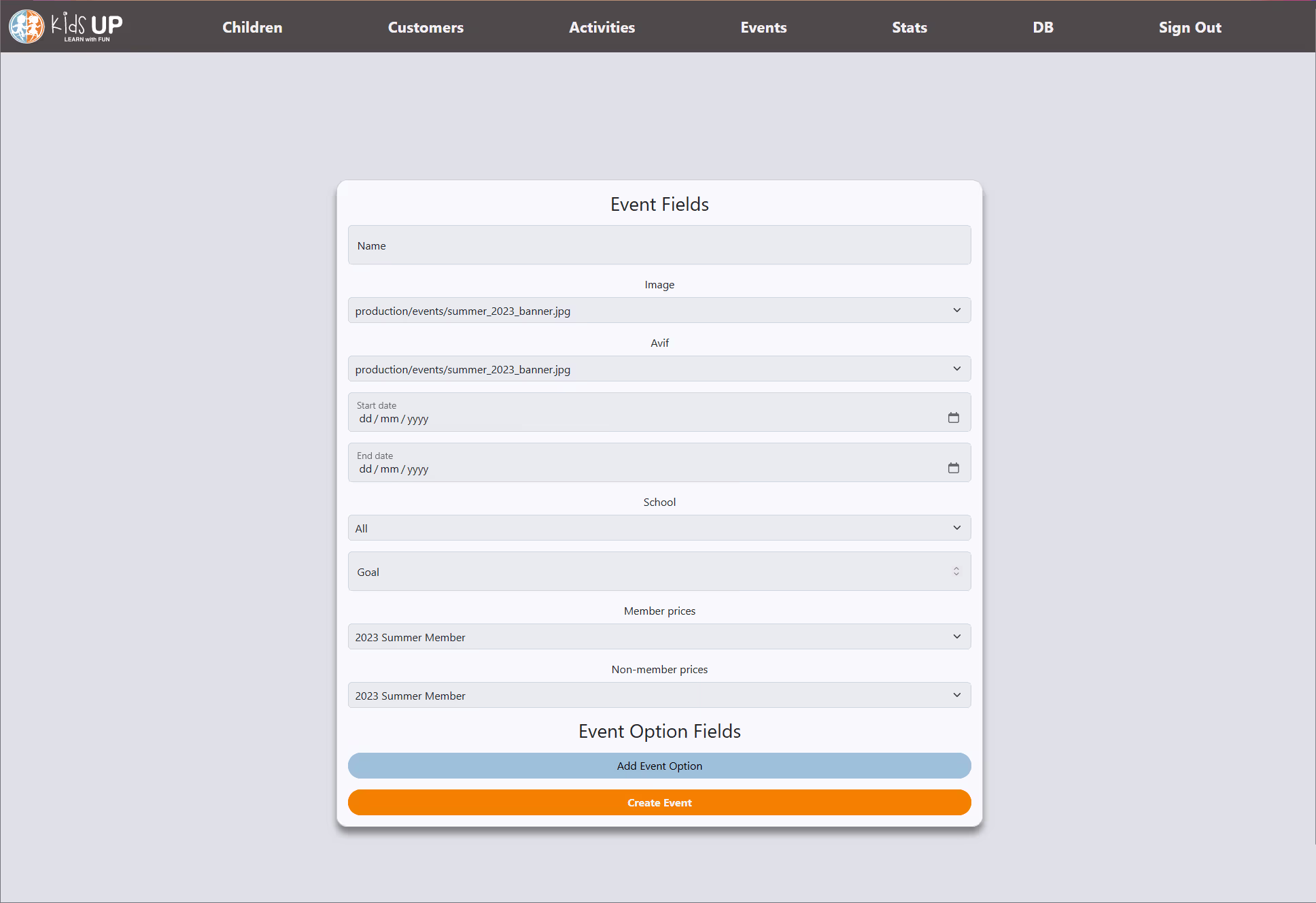

• Can create new Events
  • At a single school or all schools
  • And time slots
  • Can edit or remove the automatically created options for any time slot
  • Can edit single events/time slots
  • Can add an afternoon slot to a given special day at every school from one form
• Can upload images to be used for events, time slots or new schools
• Can download certain database tables in CSV format so Leroy can process them for statistics
• Can quickly import new children, or more slowly update existing children from CSV (used to import SS data)
• Can create new price lists and assign existing ones to be used for events
  • Can also see at a glance which price lists are used by which events
• Can create new schools
• Can create new surveys
  • Surveys can have any number of questions
  • Questions can be represented as any of the common input types (text, checkbox, select, radio etc)
  • Filters can be set to determine which children are shown the survey
  • Any column on the children table is available as a filter
• Can view the full statistics dashboard for all schools and areas

Bookings (model name is Invoice)

• Have an automatically generated summary which gives a list of all activity/option registrations and adjustments together with some basic info about the child
• Have a full version history which can be seen on the booking page, with the summary of the booking at that time, user who made the change and timestamp
• Have adjustments
  • Some are automatically applied based on certain criteria, like the hat adjustment for outdoor activities if the registered child doesn’t have a KidsUP hat
  • Can also be manually applied by staff
  • Validations prevent them reducing the total cost of the booking below 0
• Activity registrations
  • Displayed in a list with the activity name, whether it’s morning or afternoon and any options selected for that activity
  • Cost for all activities is broken down in the summary section, with the number/type of courses used and their prices shown
• Option registrations
  • Listed alongside the time slot they apply to in the activity list
  • Grouped by name and summarized with total cost for that option name in the summary section
  • Auto-destroyed if associated slot is de-registered
  • Photo service applies automatically if a sibling registered for it
• Emails with an attached summary and autogenerated PDF breakdown of the costs are automatically sent on every change to the booking
  • Confirmation emails can be automatically sent when the booking is confirmed or copied from a template at the discretion of the SM

Events

• Have their own options which apply event-wide
  • Currently only photo service is ever added, but multiple such options can be added
  • Uses the same Option model as activity options through a polymorphic association
• All activities and options can be registered for from a single page
• A live calculation of the cost for the active child is shown at the bottom of the screen
  • This live calculation is also responsible for adding/removing hidden fields from the form submitted to confirm the booking details
  • There’s a set of 3 stimulus controllers which pass messages to each other to handle each registration/unregistration
• Further details about the registered activities and any extra costs can be found in a collapsible summary on that bottom bar
• There is also a live calculation of the total cost for that family for the current event at the top of the page
• Time Slots
  • Can be manually opened and closed, preventing further registrations
  • Also automatically close on a given date
  • Can be one of a few categories (seasonal, special, outdoor and party) which have different behaviours/costs
  • Have start and end times, as well as a boolean representing whether they’re a morning or afternoon slot
  • Automatically track their registration count using counter_cache
  • Have cost modifiers for internal/external/kindy/elementary students
  • Have a snack boolean which affects their price in front and backend calculations
  • For any category other than special, the afternoon slot is automatically created from the morning slot’s information, with default options
• Time slot options
  • Options have a polymorphic association to either an event or TimeSlot
  • Options have a category, which affects how it’s displayed on the registration screen, attendance sheets and what validations are applied to it
  • Some categories have a modifier, like arrival and departure options, which represents how long before or after the activity the student can arrive/leave

Setsumeikais/Inquiries

• School and area managers can create setsumeikais at their managed schools
  • Existing setsumeikais can be edited, and copied for faster creation of similar setsumeikais
• Created with a scheduled start date/time, attendance limit, venue school, involved schools, release date and close date
• Are then provided to the React-based registration flow I created through an API
  • The current list of schools and their information/images is also provided through this API
  • A second, simpler API serves just the school names and IDs to the general inquiry form
• When customers complete the registration flow (or the separate general inquiry form I also created) their inquiry is sent to another API on the event site and stored in its database
• Staff can view setsumeikai or general inquries related to their managed schools from the event site
  • Setsumeikais and inquiries are paginated by school, then groups of 20
  • a navbar is provided to switch between setsumeikais/inquiries for different schools, for those staff members with permission to view multiple schools
• The inquiries are also provided to the legacy GAS sheets through an authenticated API to prevent 3rd parties obtaining customer personal information
  • After inquiries are sent to the GAS sheet, they’re marked as sent to avoid duplication of inquiries

Statistics Dashboard

• Divded into separate pages for Activities, Bookings, Children, Coupons, Edits, Options and Setsumeikais
• The secondary nav also allows filtering by event and school
• For setsumeikais, it’s possible to filter by area and school instead
• Each page has multiple charts showing various statistics related to that category, some of which I added on my own initiative and others requested by Jack/Leroy
• This is a pretty large part of the site but no screenshots or details because it’s sensitive business information
  • If you’re an internal manager ask me and I can show it to you
